Digital Microscopes

A microscope that can observe uneven surfaces and 3D objects with clear images thanks to its large depth of field and long observation distance. Together with a model that uses a full control system to provide high-resolution observation that rivals an SEM, this lineup includes entry models equipped with frequently used functions. Dedicated lenses that bring out the best performance of microscopes are also available.

Download Catalogues

Include Discontinued Series

Lineup

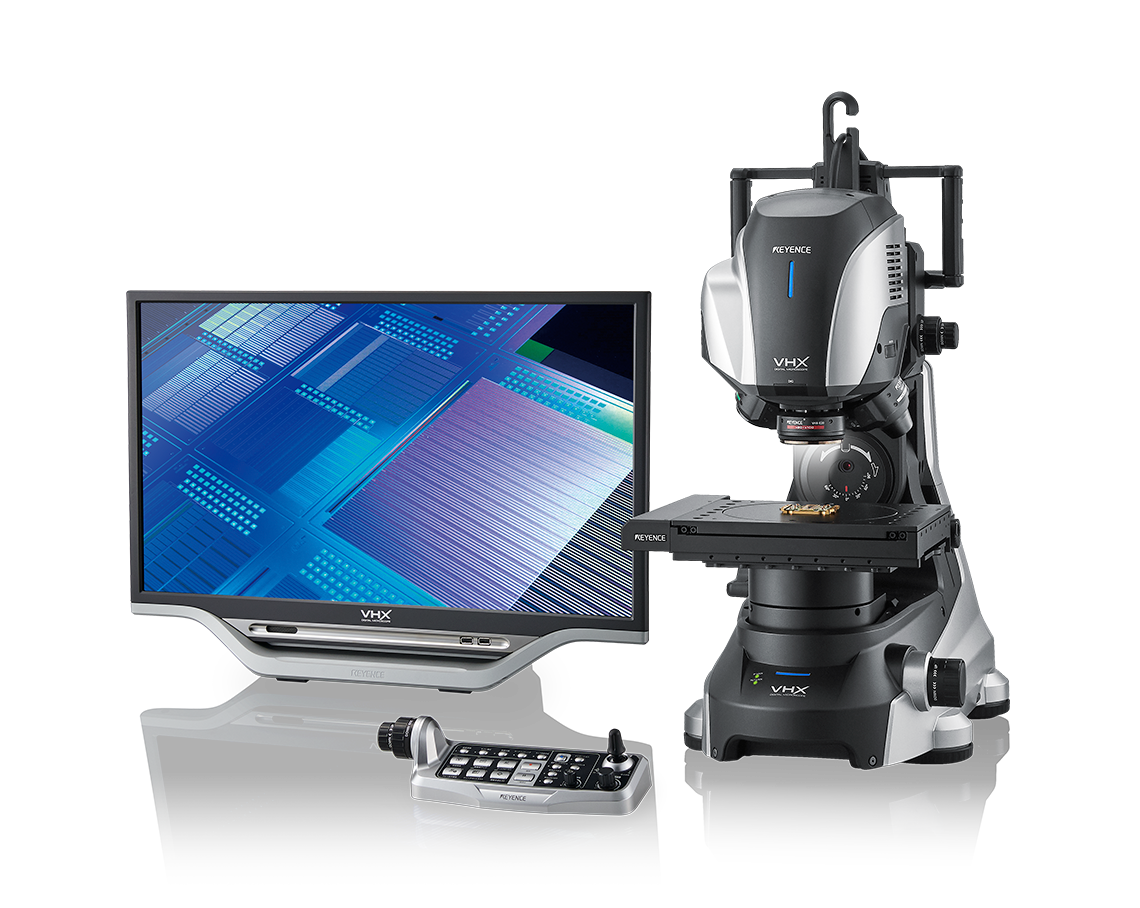

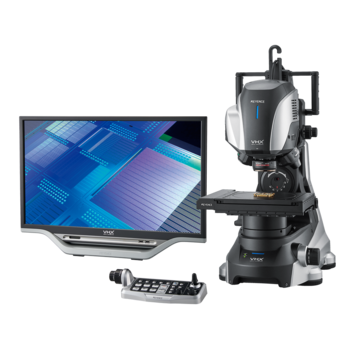

Digital Microscope VHX-7000 series

4K High Accuracy digital microscope capable of capturing high resolution images and measurement data for inspection and failure analysis, at the push of a button.

Catalogues Price Enquiry

Features

View, Capture and Measure with an All-in-One System

VIEW

Observation with an optimal balance of brightness and clarity

The VHX Series has a depth-of-field that is 20 times greater than conventional optical microscopes.
KEYENCE designs the lenses, cameras and graphic engine in-house, enabling observation with an optimal balance of depth and brightness. Even novice users can capture high resolution images with ease.

CAPTURE

Images can be saved and shared easily

With a 1 TB hard drive, images are easily saved locally.
Images can be shared over LAN or a USB drive.
Reports can be automatically created and shared.

MEASURE

Perform a wide variety of measurements with just one device

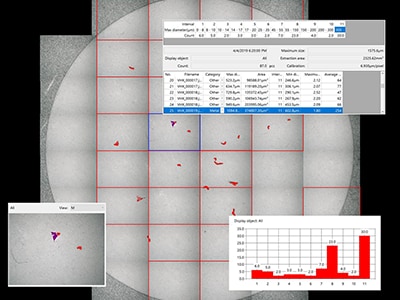

Easily perform 2D and 3D measurements. Roughness, contamination, grain size, and other measurements can be performed with one tool.

Delivering Images That Rival an SEM

Optical Shadow Effect Mode

By combining a 4K CMOS image sensor with new illumination techniques, KEYENCE has achieved a new way to observe samples.

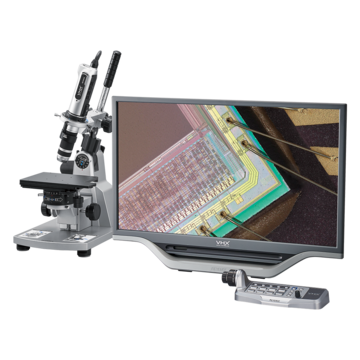

Digital Microscope VHX-F series

View, Capture, Measure more intuitively. Easy to use. Entry level microscope. | VHX-970F

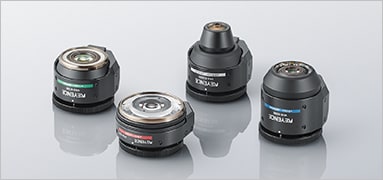

Lenses (for Digital Microscope) VH lens series

The lens unit is comprised of 24 lenses in total, including 13 lenses for the objective section, and 11 lenses for the zoom section. Using a silica lens, the VHX series can correct chromatic aberration.
