High-Performance Micro Static Eliminator

SJ-M series

ULTRA-SMALL INTEGRATED SENSING IONIZER

Applications

Removing static elictricity in a part feeder

Prevent electrostatic discharge failures on bonding machines

Static elimination of tablets after the forming process

Static elimination of metal molds

Click here to learn more

Features

Ultra-small static elimination head has no limitation on installation space.

Since the SJ-M Series provides a direct static elimination structure that directs the ion generation point at the tip of the head, it allows for high-speed and high-precision static elimination where it is needed most.

Learn more in the catalogue

Static elimination over areas at distances of 1 m or more using a ⌀12 mm head

Static elimination range and time (typical)
(Applied pressure of 0.5 MPa)

Remove static electricity from an area as large as 600 × 1500 mm using just a compact head. Eliminate static from more than 1 m away in under 1 second. Use branching to remove static electricity from inside devices.

Learn more in the catalogue

Varied lineup

Choose from spot/nozzle models as well as ultra-compact bar models. Take advantage of focused, reliable elimination of static and dust in narrow spaces or throughout a limited space. Silicone probes are also available for use in environments where metal contamination is a concern.

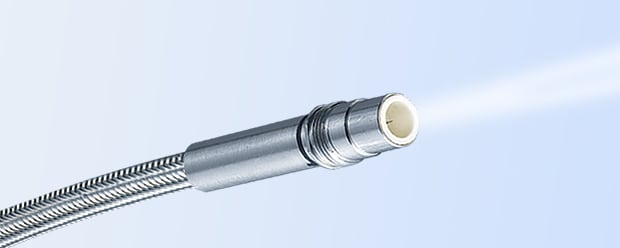

Ultra-fine Nozzle Standard probe type
With its ultra-fine nozzle of ø12 mm, a 0.5 MPa high-pressure air purge is possible.

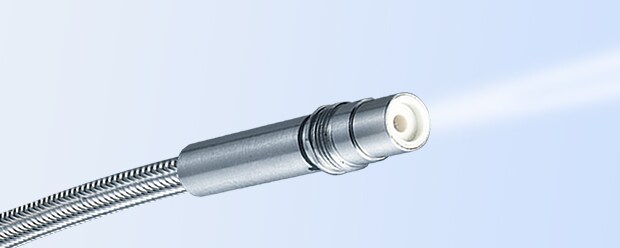

Ultra-fine Nozzle C.A.B.probe type
Five times less maintenance than conventional models

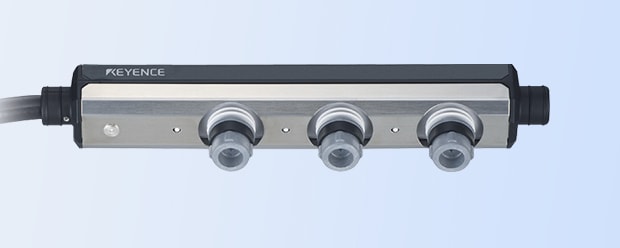

Ultra-small Bar C.A.B.probe type
Innovative design significantly reduces the need for cleaning/maintenance.

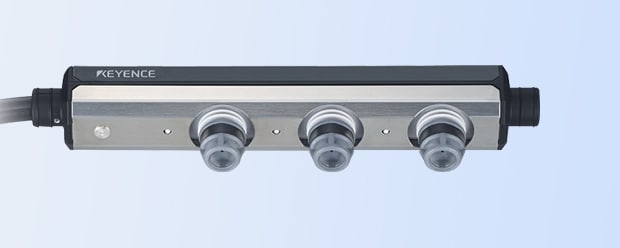

Ultra-small Bar Silicon probe type
Suitable for environments in which metal contamination must be avoided.

Learn more in the catalogue
