Sheath-Sensing Ioniser

SJ-H series

Removal of static electricity from entire rooms High-speed Static Elimination without Air

Applications

Static elimination in the coating process of bumpers

Static elimination of films

Static elimination of slitters

Defect prevention of adhesive painting on cardboard

Click here to learn more

Features

High-speed static elimination with no air flow

I.R.G. structure for air flow-free high-speed static electricity elimination

In conventional models, the GND plate essential for ion generation is mounted externally. KEYENCE's SJ-H Series, however, is the first to adopt the I.R.G. (Insert Ring Ground) structure, which includes the plate inside the ioniser. By directing the generated ions to the target rather than the GND plate, loss is minimised and the number of ions applied to the target increases. This allows for high-speed static elimination five times faster than conventional models.

Learn more in the catalogue

Taking advantage of a dedicated built-in booster for static electricity elimination over a wider range and at ultra-high speeds

Newly developed booster for ultra-high-speed static elimination over a wide angle

The new aero body was developed with thorough fluid analysis to minimize air resistance. With the world's first wide-angle booster, the SJ-H Series achieves a 90-degree-wide static elimination angle by utilizing the Coanda effect with the air flowing from the booster. By attaching the straight air booster with extraordinary ion transport capabilities, an unparalleled static elimination speed is achieved. This function can ensure excellent static elimination capacities at ultra-long operating distances for highly charged objects.

With wide-angle booster attached (side view)

With straight air booster attached (side view)

Learn more in the catalogue

High Usability

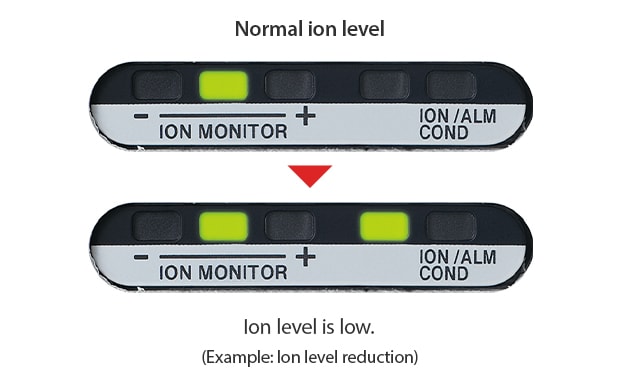

The SJ-H Series includes a self-diagnosis function that monitors the ion generation level. With the bar LED and alarm outputs, the ioniser alerts you when maintenance is required.

Learn more in the catalogue
