Light Microscope

What Is a Light Microscope?

Light microscopes are also called optical microscopes. They use light to perform magnified observation of microscopic targets such as bacteria and blood cells.

Light Microscope Structure

Visual light from the light source is condensed by the condenser lens and projected onto the microscopic, transparent sample. The light transmitted through the sample is once more condensed by a glass lens (the objective lens) for magnified observation.
There are two types of light microscopes: simple light microscopes, which use a single lens, and compound light microscopes, which use multiple sets of lenses.
Simple light microscopes are designed for low magnification. Compound light microscopes are designed for high magnification.

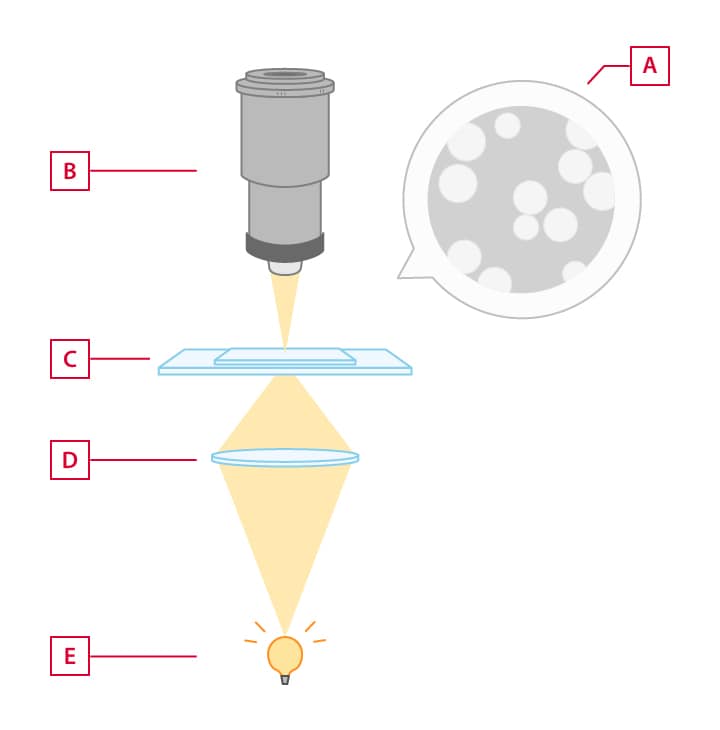

Light Microscope Structure

Condenser lens
Light source

Light Microscope Applications

The main observation targets are transparent samples such as bacteria and blood cells. Light microscopes are also known as biological microscopes. They are used to observe organisms.

Reasons for Using VHX Series Digital Microscopes

The large depth of field allows the depth composition function to provide observation with the entire image on the screen in focus even at high magnifications

There is no need to cut or polish the target. (Non-destructive observation is possible.)

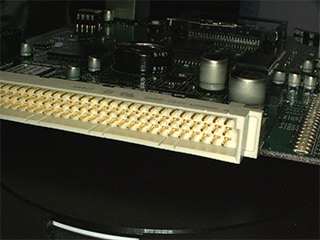

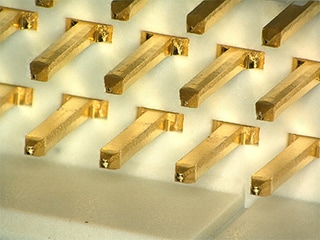

Tilted observation of a connector (header)
Macro image, 5x
Magnified image, 40x

Being able to select from multiple lighting conditions such as observation with transmitted illumination, ring illumination, coaxial illumination, polarised illumination, and differential interference contrast allows for various applications from biological microscopes to industrial microscopes.

Plankton in fluid, 700x, observation with transmitted illumination
Painted surface of car, 1000x, observation with coaxial illumination
Sugar crystals, 300x, observation with ring illumination
Bacteria, 200x, observation with transmitted polarised illumination

The standard-equipped camera and monitor allow photographs to be captured with the same quality as monitored images

The standard-equipped measuring microscope functions allow for measurement of planes and 3D profiles

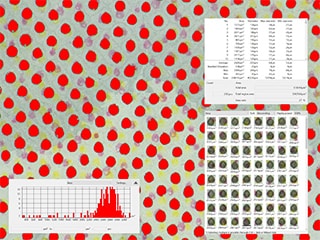

Automatic area measurement of halftone dots, 200x
2D measurement image
3D profile of casted product pinholes, 200x

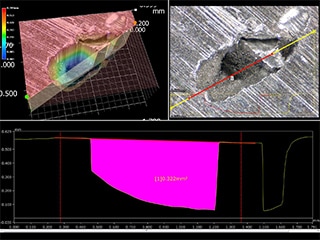

3D measurement image
