Electrical Component Assembly Inspection

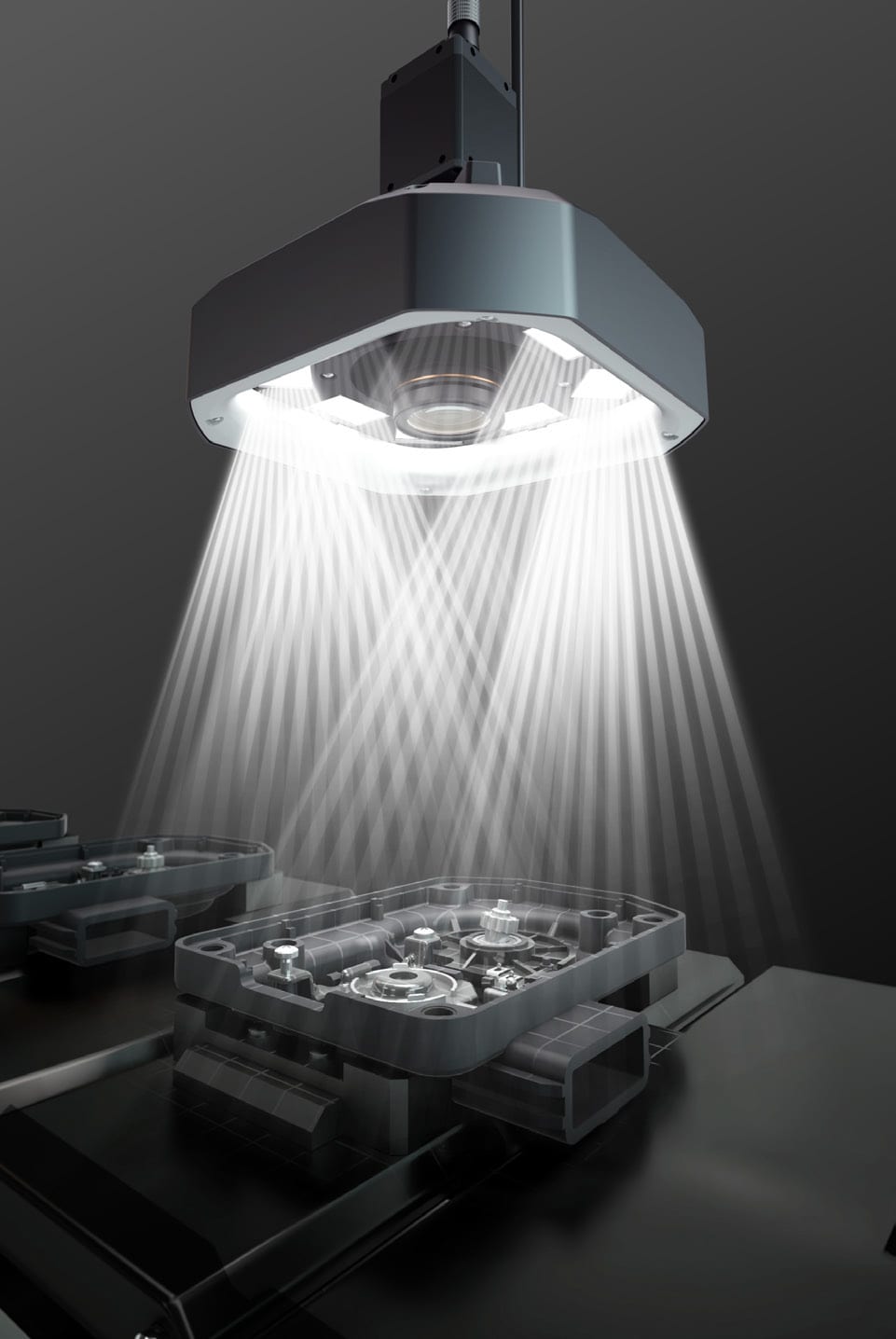

3D height data adds a variety of possible inspections to assembly and part sorting applications. Low-contrast 2D images can struggle with assembly and seating inspections when the camera can only be mounted above the part. The combination of 2D and 3D images adds stability when detecting loose parts as well as detecting shape differences with a single camera.

3D image (colour image)

3D image (height image)
