LED Lighting Vision System Peripheral Equipment CA-D Series

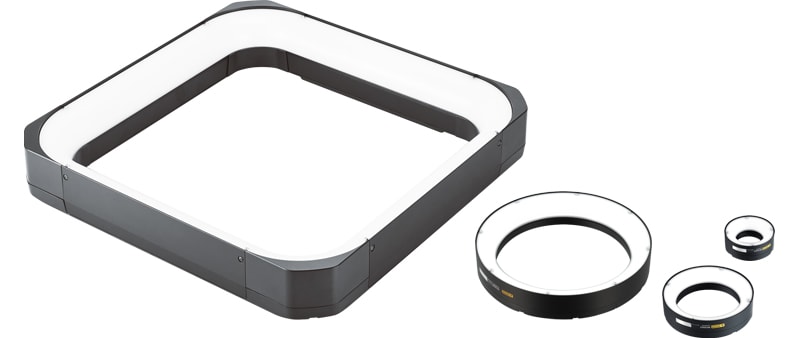

LumiTraxTM Lights High intensity lighting with LumiTraxTM capability.

Construction and imaging examples

Strobe lighting with a high-output LED

The LumiTraxTM lights are constructed with 8 light segments. Depending on the LumiTraxTM settings, 4 or 8 segments are emitted individually during the image capturing process. When used for standard lighting, all segments can be emitted simultaneously for high-intensity lighting.

LumiTraxTM imaging is supported by the XG-X2000/CV-X400 Series. When not performing LumiTraxTM imaging, these lights can only be used with all the segments lit. For detailed information on device combinations, contact your nearest KEYENCE office.

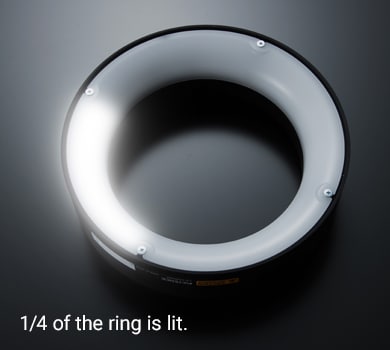

1/4 of the ring is lit.

Imaging examples using the LumiTraxTM function

Chip inspection on a metal surface

Factors such as remaining cleaning agent, dirt, and hairline fractures are cancelled so that only deep defects such as scratches and chips are detected.

Chip inspection on a printed surface

Images in which only the chips are extracted are created without being affected by the complex printed background.

Printed character inspection on a film surface

Glare, which affects inspections negatively, is eliminated to enable stable inspections.
