Vision System Lighting and Programming Made Easy
Now, anyone can easily conduct product inspection!

Intuitive Vision System
CV-X400 Series

Download Catalogue

Anyone can now easily create complex images

  • CHIP INSPECTION ON A METAL SURFACE

  • Metal casting surface carved seal inspection

  • Chip inspection on a printed surface

  • Inspection of embossed characters on resin surfaces

Precise adjustment of lighting settings as well as
highly specialised image creation skills used to be required.

With the CV-X400 Series,
anyone can now create optimal images in 3 easy steps.

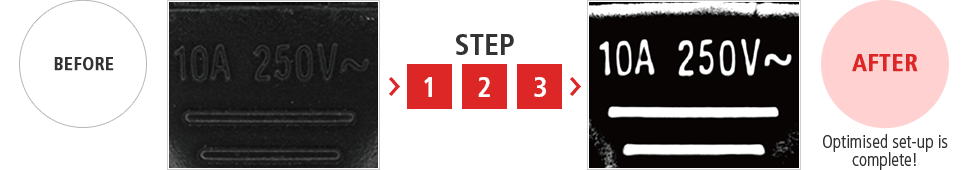

LUMITRAX TUNING

The 3 steps make it possible for anyone to easily create the optimal LumiTrax™ image.

  1. STEP 1
    Select inspection target
  2. STEP 2
    Select the most appropriate features
  3. STEP 3
    Select the optimal contrast

Download Catalogue

Application examples

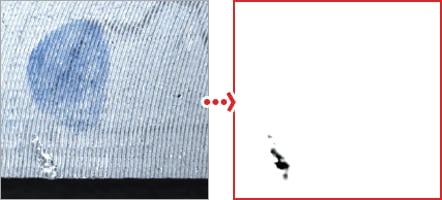

  • CHIP INSPECTION ON A METAL SURFACE

    Factors such as remaining cleaning agent, dirt, and minor hairline fractures are canceled so that only deep defects such as scratches and chips are detected.

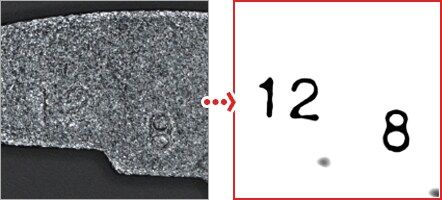

  • Metal casting surface carved seal inspection

    From a random casting surface, the carved seals with greater concave-convex information are emphasised.

  • Chip inspection on a printed surface

    Images in which only the chips are extracted are created without being affected by the complex printed background.

  • Inspection of embossed characters on resin surfaces

    Only the embossed characters are accurately extracted, even when the background or the object is the same colour.

  • For details, see the catalogue.
