Bringing a new sense
of speed and storage to PLCs

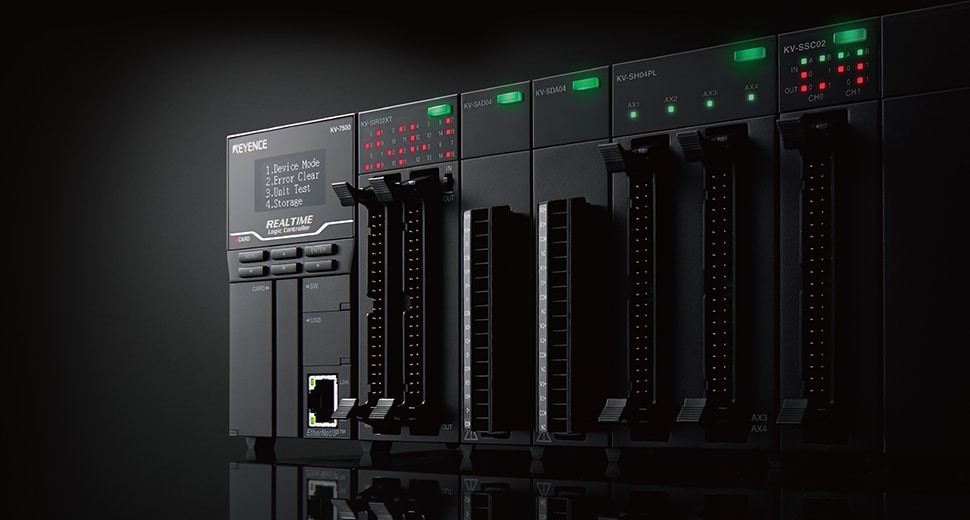

KV-7000 Series

High-speed performance Ultra-high-speed instruction execution and impressive responsiveness

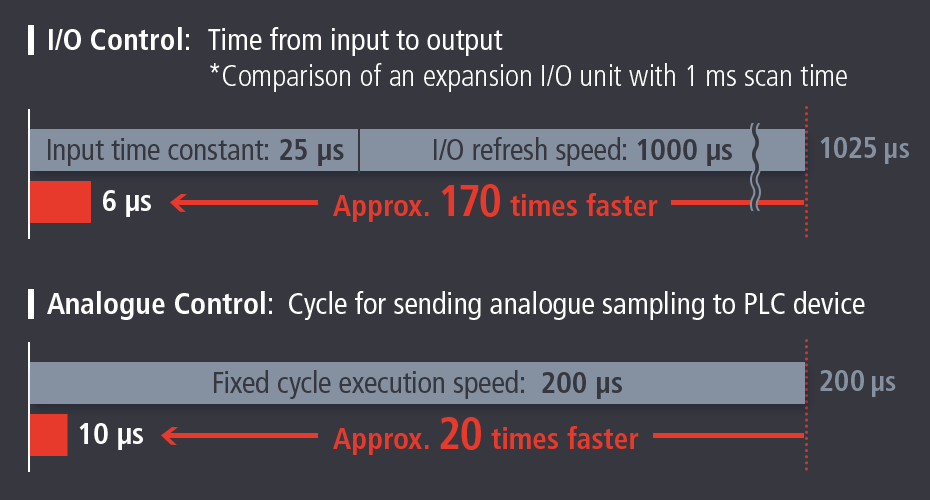

I/O control: 170 times faster than conventional products
The impressive responsiveness of the CPU unit and expansion units enables a time of just 6 μs from input to output.
Analogue control: 20 times faster than conventional products
The buffering function makes use of the A/D conversion speed of 10 μs as-is, which enables sampling times as short as 10 μs.
Basic instruction execution: 0.96 ns FASTEST IN INDUSTRY

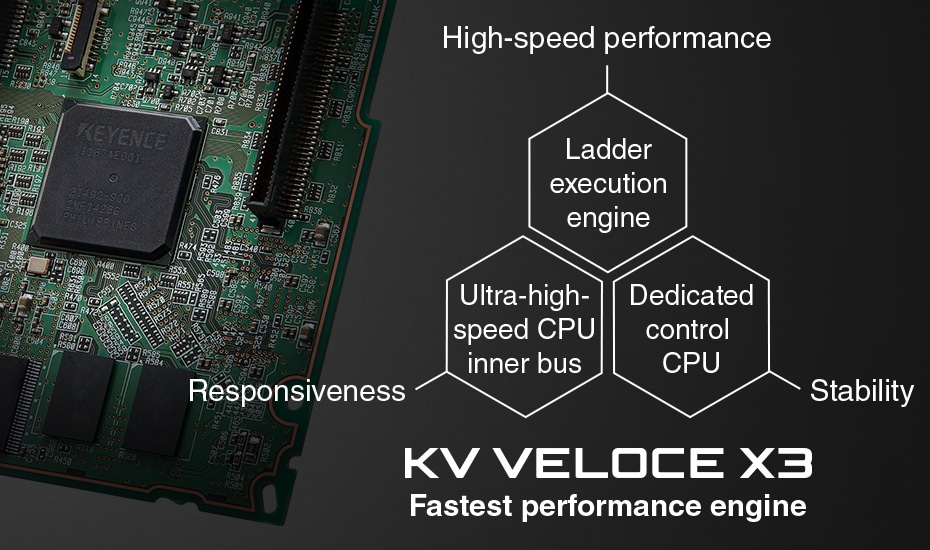

"KV VELOCE X3," our highest-performance engine optimised specifically for use with PLCs, enables speeds that are 10 times faster than conventional products.
Unit interrupt response speed: 4 μs FASTEST IN INDUSTRY
The new bus system "Ultra-high-speed CPU inner bus" and the new unit "S-Unit" enable impressive responsiveness.

Large capacity A wide range of applications made possible by our new concept: freely usable memory

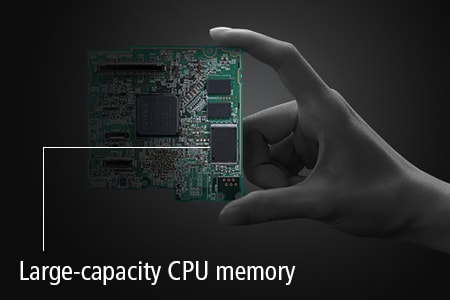

Large-capacity CPU memory 64MB BEST AMONG SIMILAR PRODUCTS
Conventional memory has been limited in terms of programs and comment capacity, but the KV-7000 is different. It is equipped with large-capacity CPU memory that can be freely used to match the application.
Memory customisation function
The areas to be occupied for the project and for the user memory can be freely customised.
Device comment entry in up to 8 languages
Comments can be stored in up to 8 languages, so monitoring can be performed in a language that's familiar to the user.
512k word file register
Level changes can be performed easily even for product models with numerous setting items.
SD card-free logging
Direct logging , SD card not required.

Universal Optimised functions for universal application

All devices battery-less
This is possible thanks to the adoption of large-capacity non-volatile memory. As a result, no data will be lost due to the battery running out, and there is no need to stock spare batteries.

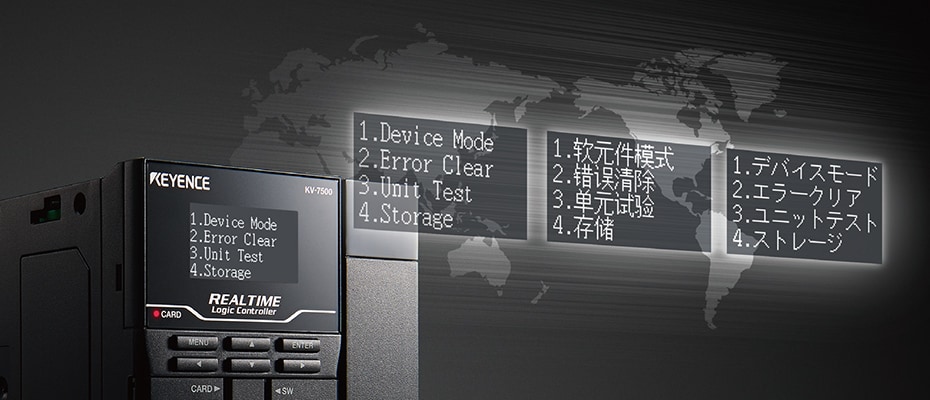

Multi-language Hyper Access Window display
The access window, useful at start-up and when trouble occurs, supports three different languages: Japanese, English, and Chinese.

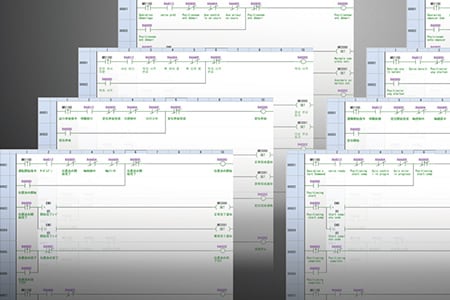

Input and display comments in up to 8 languages
Comments in up to 8 languages can be registered for a single project, and the language can be changed just by selecting the display language.

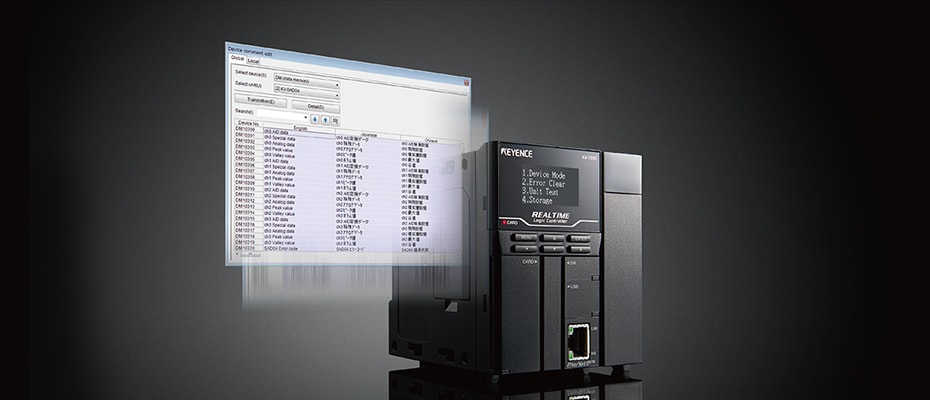

Universal comment dictionary editing
A translation dictionary table is available for making multiple-language comments into assets. The KV-7000 is also equipped with a function for translating words.

Network Program-less Ethernet and serial communication

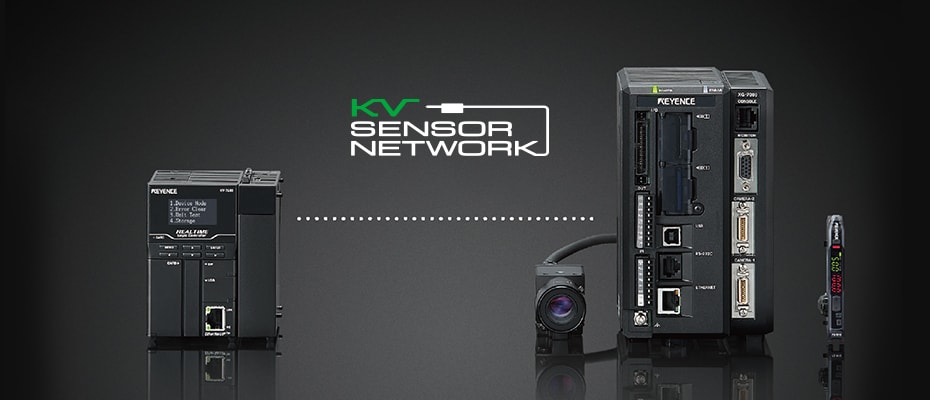

Program-less communication with sensors
Communication can be performed just by selecting the sensor to communicate with. Also, the simplified wiring, which uses a LAN cable to connect the devices, reduces wiring man-hours.
Predictive maintenance for sensors
A sensor's set values and current values are always captured within the PLC, which enables predictive maintenance for sensors by monitoring sensor light intensity.

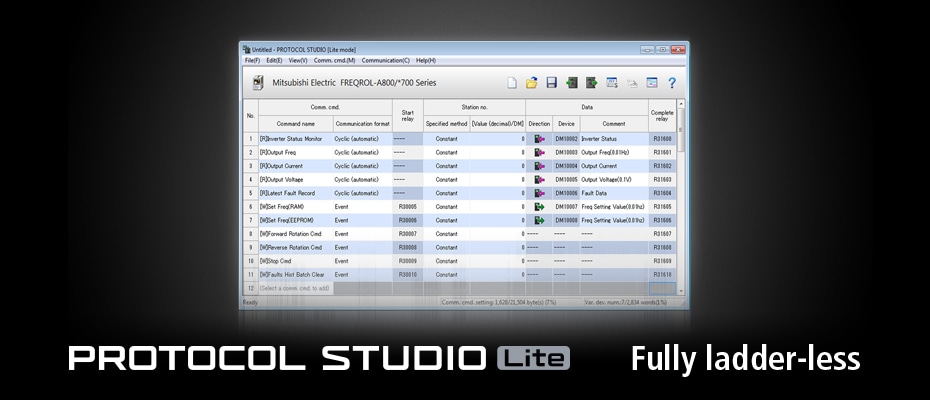

Program-less serial communication
Inverter frequencies, current temperature controller values, and other pieces of information are automatically saved to the DM (data memory) without the use of a program.
Automatic management of the communication schedule
When changing equipment settings during cyclic communication, the transmission timing is automatically managed by the unit for each command.
