Measurement 2Laser Displacement Sensor

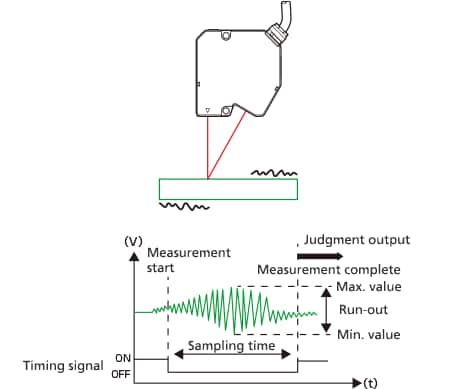

Laser displacement sensors can be used to measure the oscillation at a single point on a targets surface.


  • The peak-to-peak value of the run-out can be calculated by using a peak-to-peak hold or a similar function.
  • Vibration measurements must be performed at a sampling rate of at least ten times the targets oscillation frequency.
LK-G Series
  • Triangulation Method.
  • World's fastest sampling rate 392 kHz.
  • 12 sensor heads can be connected.
LK-G Series
