Measurement 2Reflective Laser Displacement Sensor

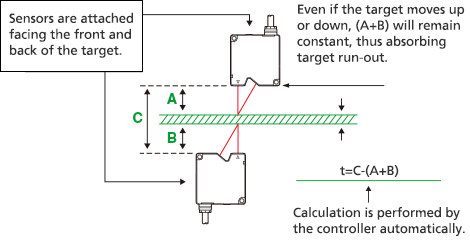

Thickness is measured by passing a target between two sensor heads.
KEY POINTS
Optical-axis alignment or span adjustment are important to ensure that A+B is fixed even if there is workpiece run-out up or down.
LK-G Series
- Triangulation Method.
- World's fastest sampling rate 392 kHz.
- 12 sensor heads can be connected.
