Selecting a Measurement Sensor

Height / Step Height

Height and height difference measurements can be performed with 1D, 2D, or 3D sensors. The best choice for an application will depend on the target material, how consistently it's positioned, and the surrounding environment. Check out some options for height measurement below, or request a free consultation with a local measurement expert.

View Catalogue How to Measure UNDERSTANDING DISPLACEMENT SENSORS/MEASUREMENT SYSTEMS

High-speed laser displacement sensors can check for valve float without touching the valve head.

Ultra High-Speed/High-Accuracy Laser Displacement Sensor

LK-G5000 series

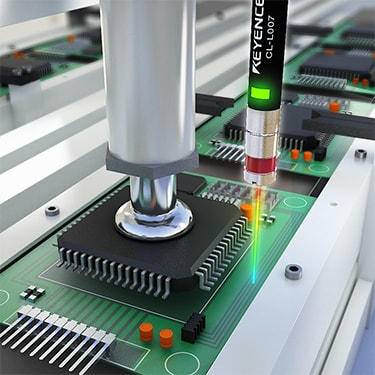

Small diameter heads allow for precise positioning of parts in tight areas.

Confocal Displacement Sensor

CL-3000 series

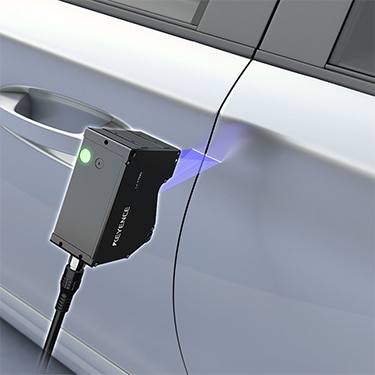

2D laser displacement sensors can measure both width and height, allowing for panel gaps to be accurately measured, regardless of the surface finish or colour.

High-speed 2D/3D Laser Profiler

LJ-V7000 series

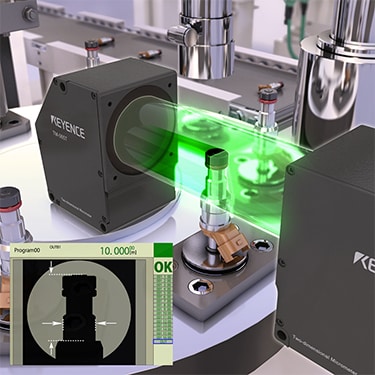

2D Thrubeam sensors allow high-speed dimensional inspections to be taken on the silhouette of a part.

High-speed 2D Optical Micrometer

TM-3000 series

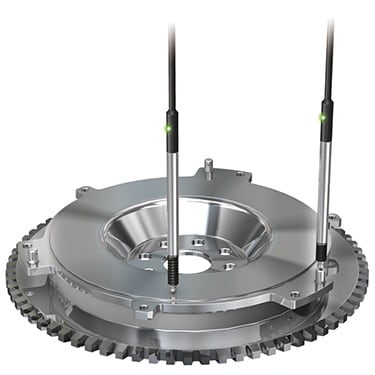

Check step heights on machined parts without influence from oil or other surface contamination.

High-Accuracy Digital Contact Sensor

GT2 series

Measure the position and projection of connector terminals simultaneously. Conventionally, two measurement steps were required using an image processing system and a contact sensor. The LJ-V7000 Series can perform both inspections simultaneously. This achieves cost reduction by reducing the amount of installed equipment.

High-speed 2D/3D Laser Profiler

LJ-V7000 series

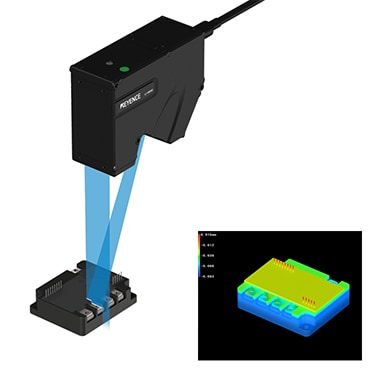

Measure the flatness of the terminals of power modules. The target is detected by its surface and the flatness is measured based on the reference plane calculated with the least squares fitting method. The errors caused by the tilted positions of targets can be cancelled, which ensures accurate inspection.

High-speed 2D/3D Laser Profiler

LJ-V7000 series

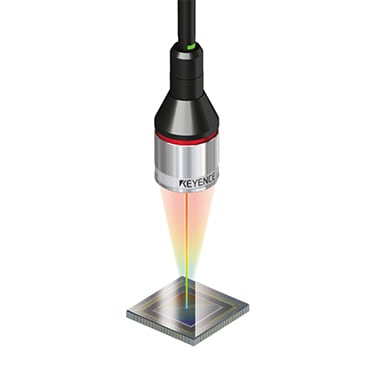

Check the tilt of the elements after bonding. The CL-3000 Series uses the multi-colour confocal method that enables coaxial measurement. No matter whether the target surfaces are specular or rough, they can be measured in the same setting, which achieves easy and highly accurate inspection.

Confocal Displacement Sensor

CL-3000 series
