Checking for missing O-rings during EGR valve assembly

Checking for missing O-rings during EGR valve assembly

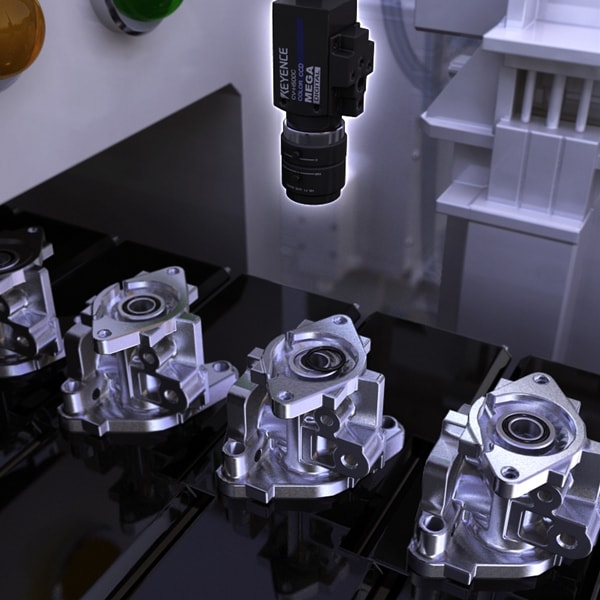

Checking for missing O-rings or O-ring misalignment during EGR valve assembly.

1. The colour tone variation in die-cast parts caused detection errors when standard machine vision equipment was used for detection. The Pattern Search tool of the XG Series ensures stable detection even when background colours vary. 2. The XG Series has ultra-compact, 12 mm (0.47) square, cameras and side-view attachments that enable sensors to be mounted in small spaces.

Benefit

Missing O-rings and O-ring misalignment were previously checked visually before press-fitting. It was sometimes difficult to see the parts, and the method was inconsistent. Using machine vision equipment ensures a stable inspection of all parts.

Applicable Product Catalogue

LEARN THE DETAILS OF THE PRODUCT

  • XG-8000 series - Customizable Vision System

    The XG Series contains high level vision system technology to provide flexibility and power to solve a wide range of applications.

  • XG-7000 series - Customizable Vision System

    The XG Series offers standard programming directly with the controller or advanced programming using the optional Vision Editor PC software.

  • CV-X series - Intuitive Vision System

    THREE FEATURES MAKE THE CVX A GLOBAL STANDARD.
    State-of-the-art algorithms are available for anyone.
    Quick and easy setup.
    One system can handle all applications due to the wide variety of supporting products.

  • CV-5000 series - Intuitive Vision System

    The CV-5000 Series has the largest number of camera types for its class, letting you select the optimum camera for a wide range of applications.

  • CV-3000 series - Intuitive Vision System

    Providing the ultimate flexibility with a wide variety of camera choices using the industry's highest-performance image processing engine.
