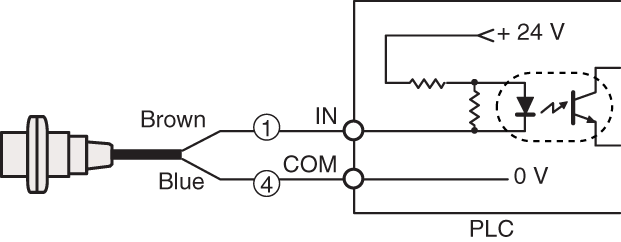

Connection to built-in DC power supply type PLC
(externally connected power supply

EV-108M IO circuit

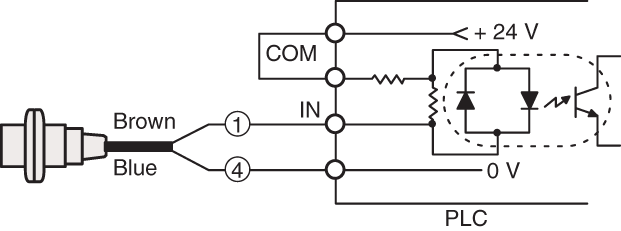

Connection to built-in DC power supply type PLC
(internally connected power supply

EV-108M IO circuit

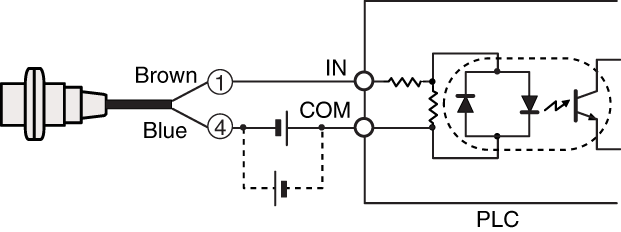

Connection to PLC having no internal DC power supply

EV-108M IO circuit

For connections indicated by the dotted lines,
reverse brown and blue sensor wires

EV-108M IO circuit

EV Series

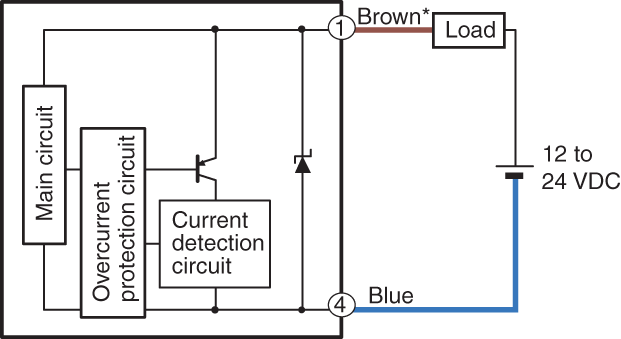

DC 2-wire type

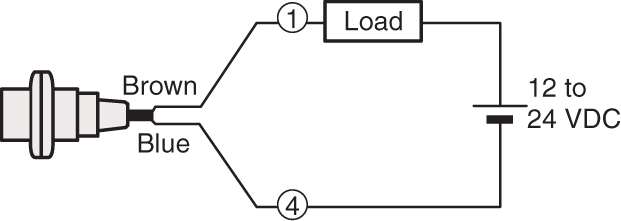

EV-108M IO circuit

* Load can also be connected between blue wire and negative terminal of power supply.
The M8 sensor does not contain short-circuit protection or a current detection circuit.
1 and 4 in the circuit diagram shows the pin number of the connector type.
