I/O Circuit Connection diagram

* Download CAD file or product manual for larger image/text and more detail.

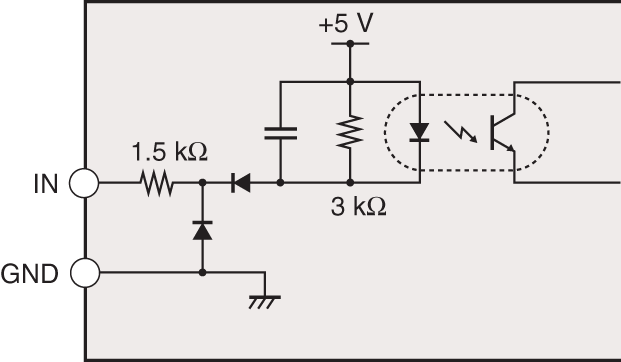

Input to SYNCHRONOUS (9), AUTO‑ZERO (11)
and HOLD RESET (13)

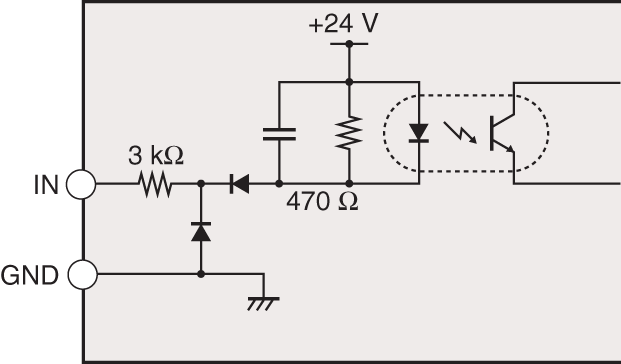

Input to EXT 1 (15), EXT 2 (16), EXT 3 (17) and
connector pins (RD-50E)

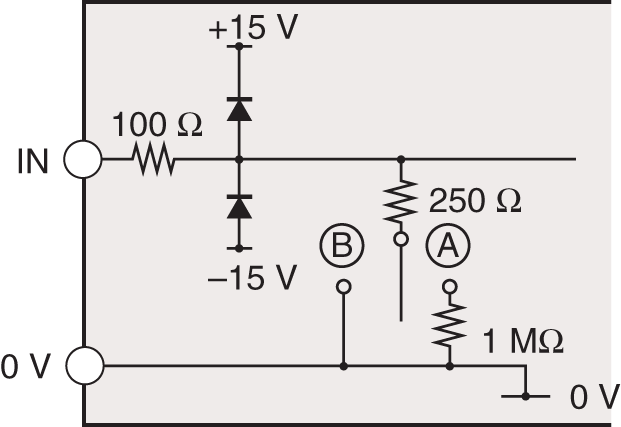

Input to analogue input terminal INPUT X (5) and
INPUT Y (7)

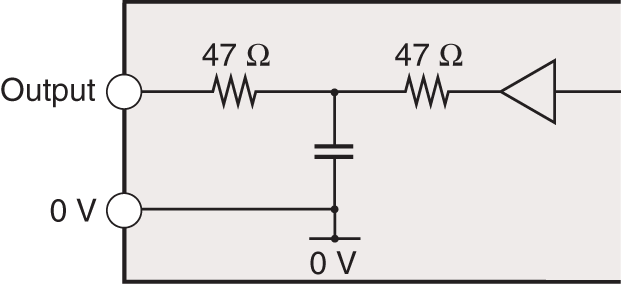

Analogue voltage output (3) - (4)

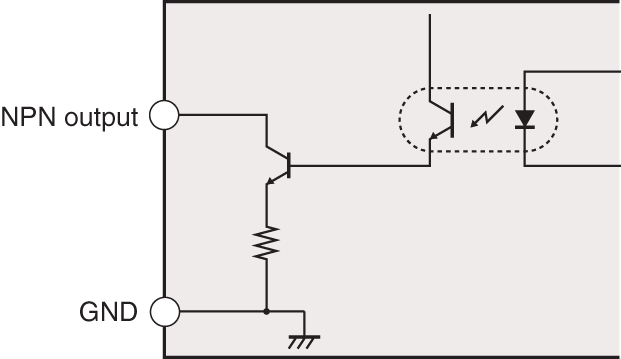

NPN open-collector output
[HH OUT (18), HI OUT (19), GO OUT (20), LO OUT
(21), LL OUT (22), PEAK/BOTTOM (24)]
